Product Introduction

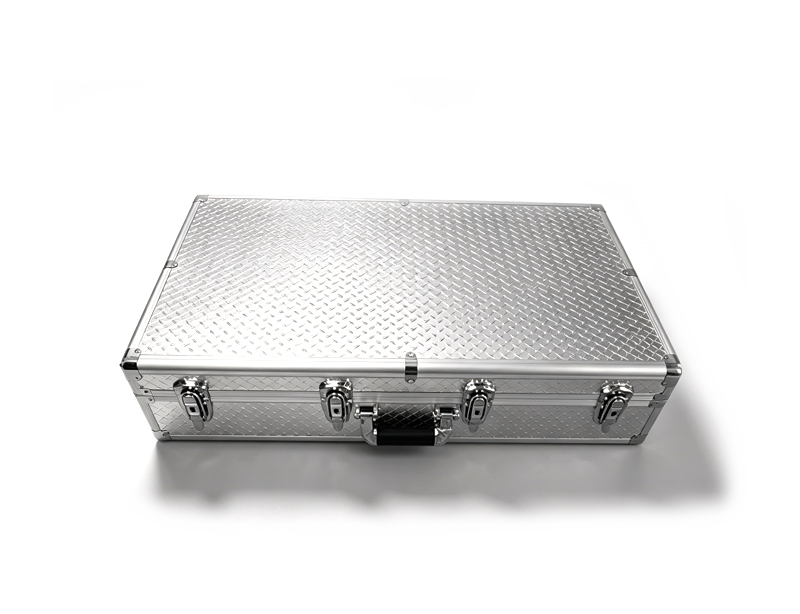

This heavy-duty diamond plate aluminum case is engineered for industrial-grade protection of long and heavy equipment. Built with a rugged checker-plate (diamond plate) aluminum exterior, it offers exceptional scratch resistance, structural rigidity, and a distinctive industrial appearance that stands up to the toughest working environments.
The elongated, low-profile design is ideal for transporting rifles, long tools, stage lighting bars, architectural samples, surveying poles, and other equipment that requires a longer footprint. Four heavy-duty butterfly latches — twice the standard number — distribute closing force evenly along the length of the case, ensuring a tight, secure seal even under heavy loads. A reinforced center carry handle provides balanced lifting for the longer case body.
Inside, a customizable foam interior can be configured to cradle your specific equipment, while the rigid diamond plate exterior and reinforced metal corners protect against impacts, abrasion, and rough handling in workshops, job sites, and transport vehicles.
Diamond Plate Aluminum Exterior: Checker-plate aluminum panels offer superior scratch and abrasion resistance with a rugged industrial finish
Elongated Low-Profile Design: Long, flat form factor optimized for rifles, long tools, and extended equipment
Four Heavy-Duty Butterfly Latches: Twice the standard latch count for even pressure distribution and secure closure along the full length
Reinforced Center Carry Handle: Balanced lifting handle positioned at the case's center of gravity
Metal Corner Protectors: Heavy-gauge metal corners at all eight edges for impact resistance
Riveted Construction: Full rivet assembly along all frame joints for maximum structural integrity
Customizable Foam Interior: Pluck or CNC-cut foam to fit specific equipment layouts
Stackable Flat Design: Flat top and bottom surfaces for stable stacking in storage and transport
Industrial-Grade Hardware: Chrome-plated latches and handles built for repeated heavy use
Product Advantages
Superior Abrasion Resistance: Diamond plate aluminum is significantly more scratch-resistant than smooth panel aluminum, maintaining its appearance even after years of rough handling in industrial environments.
Enhanced Structural Rigidity: The embossed diamond pattern adds stiffness to the panels, reducing flex and improving overall case strength compared to flat aluminum panels of the same thickness.
Four-Latch Security: With four latches instead of the standard two, this case maintains a uniform seal along its entire length, preventing warping or gaping — critical for longer cases that are more prone to flexing.
Optimized for Long Equipment: The elongated profile eliminates the need for oversized square cases when transporting rifles, long tools, or extended equipment, reducing wasted space and overall weight.
Balanced Carrying: The center-positioned handle ensures the case hangs level during transport, reducing strain and making longer cases easier to carry single-handedly.
Industrial Aesthetic: The diamond plate finish conveys heavy-duty durability and is well-suited for military, tactical, industrial, and outdoor brands that want a rugged, purpose-built appearance.
Size: Custom length, width, and depth to fit specific equipment (long profiles available up to 1500mm+)
Exterior Panel:
Diamond plate aluminum (standard)
Smooth brushed aluminum
Black or coloured ABS panels
Interior Foam:
CNC precision-cut foam for exact equipment fit
Pluck foam for flexible layouts
Egg-crate foam in lid for top cushioning
Hardware:
Keyed locks or combination locks (replace or supplement butterfly latches)
Additional side handles for two-person carrying
Wheels and telescopic handle for heavy loads
Branding:
Silk-screen printing on diamond plate surface
Laser engraving on aluminum frame
Custom metal nameplates
Internal Accessories:
Removable divider trays
Document pockets in lid
Elastic retention straps
Lockable hasps for padlocks
Firearms and Tactical: Rifle cases, shotgun cases, tactical gear transport, and shooting sports equipment
Industrial Tools: Long-handled tools, torque wrenches, pipe tools, and specialized industrial equipment
Stage and Events: Lighting bars, microphone stands, boom poles, truss sections, and stage hardware
Surveying and Construction: Survey poles, laser levels, measuring tools, and construction instruments
Architecture and Design: Architectural samples, tile boards, material display panels, and presentation cases
Sports and Recreation: Fishing rods, archery equipment, billiard cues, and long sporting gear
Aerospace and Defense: Long components, antenna sections, and specialized field equipment
Musical Instruments: Guitar effects pedal boards, wind instruments, and extended-length instrument cases
Emergency Services: Rescue tools, hydraulic spreader components, and long-handled emergency equipment
Film and Broadcast: Camera sliders, jib arms, light stands, and grip equipment
Product Specifications
Parameter | Specification |
Exterior Material | Diamond plate (checker-plate) aluminum alloy |
Frame | Extruded aluminum profile with riveted construction |
Corners | Heavy-gauge metal reinforced corners (8 pcs) |
Latches | Heavy-duty chrome butterfly latches (4 pcs) |
Handle | Reinforced center carry handle |
Interior | Customizable EVA / PE foam (pluck or CNC-cut) |
External Dimensions | Customizable (long profiles available) |
Weight | Depends on size and configuration |
Standard Finish | Silver diamond plate aluminum |
Custom Options | Size, foam, locks, colour, branding |
FAQ
Q: Why does this case have four latches instead of two?
A: Longer cases are more prone to flexing along their length, which can cause the lid to gap or warp. Four evenly spaced latches distribute closing pressure uniformly, maintaining a tight seal along the entire edge and ensuring the case stays securely closed even when carrying heavy or unevenly distributed loads.
Q: What is diamond plate aluminum, and why is it used?
A: Diamond plate (also called checker plate or tread plate) is aluminum with a raised diamond pattern embossed into the surface. The pattern adds structural rigidity, improves scratch and abrasion resistance, and provides a non-slip surface. It is commonly used in industrial, military, and automotive applications where durability is prioritized.
Q: Can this case be used as a rifle case?
A: Yes. The elongated profile and customizable foam interior make it well-suited for rifle and shotgun transport. We can cut foam to fit specific firearm models, magazines, scopes, and accessories. For legal compliance, please ensure you follow all local firearms transport regulations, including lock requirements.
Q: Is the diamond plate surface slippery?
A: No. The raised diamond pattern actually provides improved grip compared to smooth aluminum, making the case easier to handle and less likely to slide when stacked. The texture also hides minor scratches and scuffs better than a smooth finish.
Q: Can wheels be added to this case?
A: Yes. For larger or heavier configurations, we can add recessed wheels and a telescopic pull handle. This is recommended for cases exceeding approximately 1000mm in length or 15kg in loaded weight, as it significantly improves transport convenience.
